Scanning Electron Microscopy (SEM)

Scanning Electron Microscopy (SEM) testing laboratory services

Introduction

Embark on a captivating exploration of the microscopic realm as we unveil the wonders of Scanning Electron Microscopy (SEM). This powerful imaging technique transcends the limits of traditional microscopy, providing unprecedented insights into the intricate structures of materials.

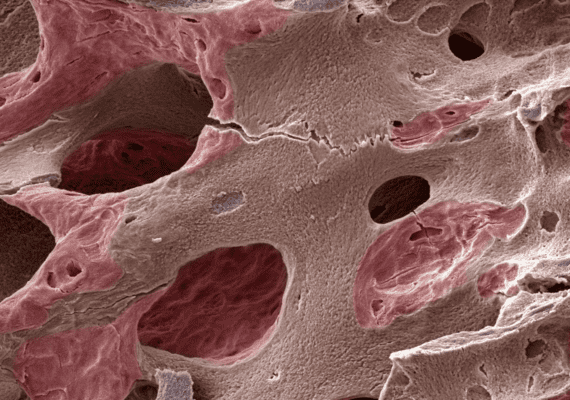

Scanning electron microscope SEM testing lab

  • Unprecedented Magnification

    SEM becomes a gateway to unprecedented magnification, allowing us to venture into the intricate world of materials at levels previously unseen. With the ability to magnify specimens thousands of times, SEM transforms the ordinary into the extraordinary, providing a visual journey into the microcosmos.

  • Surface Imaging Mastery

    SEM expertise extends beyond magnification, delving into surface imaging mastery. High-resolution images reveal the surface morphology and topography of materials, enabling a profound understanding of their physical characteristics and features.

  • Elemental Composition Analysis

    SEM is not only for imaging but also for elemental composition analysis. By employing energy-dispersive X-ray spectroscopy (EDS) coupled with SEM, we unravel the chemical makeup of materials, providing a comprehensive profile of their elemental constituents.

  • Materials Defect Analysis

    In the realm of quality assurance, SEM excels in materials defect analysis. The technique allows us to meticulously identify and characterize defects, offering insights critical for industries where the integrity of materials is paramount.

  • Nanostructure Examination

    SEM becomes a tool for exploring the nanostructures of materials. This capability enables us to delve into the intricate details of nanotechnology, understanding how materials behave at the smallest scales and unlocking possibilities for advanced applications.

  • Crack and Fracture Analysi

    In the investigation of materials' structural integrity, SEM is employed for crack and fracture analysis. The technique unveils the origins and propagation of cracks, aiding in understanding the underlying mechanisms that influence the mechanical properties of materials.

  • Cutting-Edge SEM Applications

    At the forefront of SEM innovation, cutting-edge approaches such as 3D imaging and in-situ microscopy push the boundaries of SEM, offering a deeper understanding of material properties and behavior in ways previously unexplored.

Scanning electron microscope SEM testing lab

Conclusion

Scanning Electron Microscopy is not merely a scientific tool; it's a transformative journey into the heart of materials. Each high-resolution image is a narrative, telling a unique story about composition, structure, and behavior, unraveling the microscopic details that define materials. Ready to explore the hidden realms of your materials? Contact us today for unparalleled Scanning Electron Microscopy services. Whether it's surface imaging, elemental analysis, or defect characterization, we are your partner in revealing the microscopic universe. Transform your understanding – reach out now!

FAQ

A Scanning Electron Microscope (SEM) is an advanced imaging instrument that utilizes electron beams to generate high-resolution, three-dimensional images of the surface of specimens. It is widely employed in scientific research, materials characterization, and industrial applications.

SEM is a technique utilizing electrons to produce high-resolution images, revealing detailed surface structures of specimens.

By scanning a focused electron beam across a sample’s surface, SEM generates signals used to create detailed, three-dimensional images.

SEM is versatile, capable of analyzing materials like biological specimens, metals, polymers, and ceramics

Yes, preparation is crucial. Coating samples with a thin layer of conductive material enhances imaging quality.

While SEM alone doesn’t provide compositional details, it can be coupled with energy-dispersive X-ray spectroscopy (EDS) for elemental analysis.

SEM is vacuum-based, unsuitable for imaging samples in their natural state. Non-conductive samples may require special preparation.
