Rotary Abrasion Testing As Per Standard ASTM D1044

What is Rotary Abrasion Testing?

Rotary abrasion testing is designed to simulate the wear and tear that materials might encounter during their service life. By rotating a test specimen under a specific abrasive load, this method provides insights into the material’s durability and ability to withstand frictional forces. The ASTM D1044 standard specifically addresses the method used to test the abrasion resistance of organic coatings, plastics, and other materials.

Purpose of ASTM D1044 Rotary Abrasion Testing

The primary purpose of ASTM D1044 rotary abrasion testing is to:

1. Evaluate Material Durability: By measuring the material’s resistance to abrasion, manufacturers can determine its suitability for various applications.
2. Quality Control: Ensures consistency in material performance, which is vital for maintaining product quality.
3. Comparative Analysis: Provides a basis for comparing the abrasion resistance of different materials or coatings, aiding in material selection and product development.

Testing Apparatus and Setup

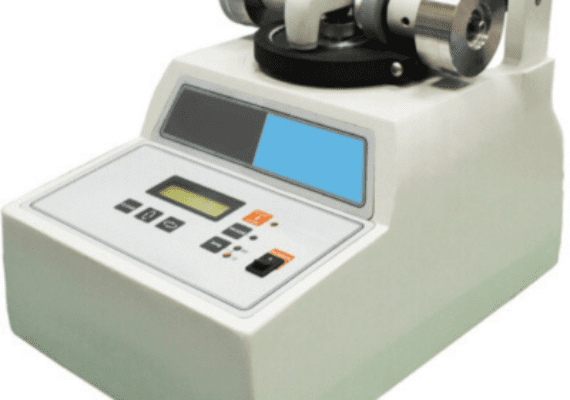

The ASTM D1044 test method uses a Taber Abraser, a device specifically designed for this type of testing. The key components of the apparatus include:

• Rotating Platform: The specimen is mounted on a rotating platform.
• Abrasive Wheels: Two abrasive wheels apply a controlled force to the material surface as it rotates.
• Weights: Standard weights are used to apply the specified load to the abrasive wheels.

Testing Procedure

1. Specimen Preparation: The material to be tested is cut into a circular shape, typically 100 mm in diameter. The thickness should not exceed 12.5 mm. The surface should be free of any dirt, grease, or loose particles.

2. Mounting the Specimen: The test specimen is securely mounted on the Taber Abraser’s rotating platform. Care is taken to ensure that the specimen is flat and evenly placed.

3. Selection of Abrasive Wheels: Depending on the material being tested, different types of abrasive wheels (e.g., CS-10, H-18) may be used. The choice of wheel affects the abrasion rate and should be selected according to the ASTM D1044 guidelines.

4. Setting the Load: Standard loads, typically 500g or 1000g, are applied to the abrasive wheels. The load determines the pressure applied to the specimen surface during testing.

5. Testing: The platform rotates at a speed of 70 revolutions per minute (RPM). The number of cycles may vary, but common tests run for 500 or 1000 cycles to simulate extended wear conditions.

6. Evaluation: After testing, the material loss is measured, usually in terms of weight loss (mg). This weight loss corresponds to the material’s abrasion resistance, with lower weight loss indicating higher abrasion resistance.

Significance of the Results

• Material Selection: Materials with low weight loss values are considered more abrasion-resistant and suitable for applications where surface wear is a concern.
• Product Development: The results guide engineers and designers in improving material formulations and developing more durable coatings and products.
• Quality Assurance: Ensures that materials meet specific abrasion resistance standards, maintaining consistency in production and performance.
